Test patterns, LTC timecode and A/V sync, all in one tab set.

Everything a video operator needs to align and verify a signal chain before doors open — alignment grids, bit-exact LTC timecode, and a calibrated A/V sync generator.

Get MID Tech Download installer

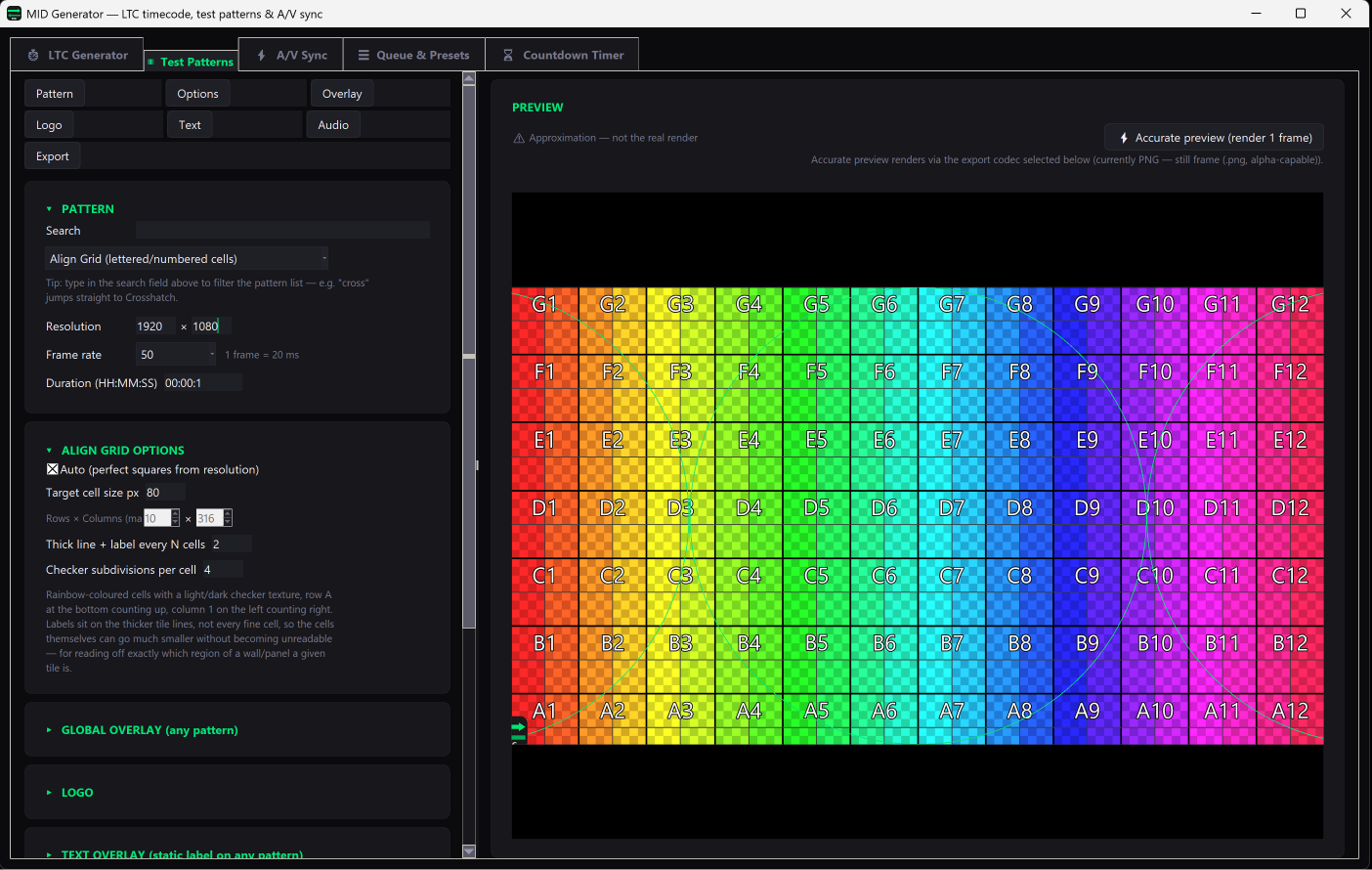

MID Generator Test Patterns tab showing a lettered/numbered alignment grid

A searchable pattern library, rendered at your exact resolution.

SMPTE/EBU bars, moving patterns, zoneplate, step wedge, PLUGE, crosshatch and HDR HLG/PQ ramps, with logo and text/timecode overlays. The preview matches the real encoder output, not an approximation.

Align Grid, crosshatch, zoneplate, step wedge and more
Bit-exact LTC export (SMPTE 80-bit, drop-frame aware) and a live timecode clock
Background render queue with JSON presets for repeat setups

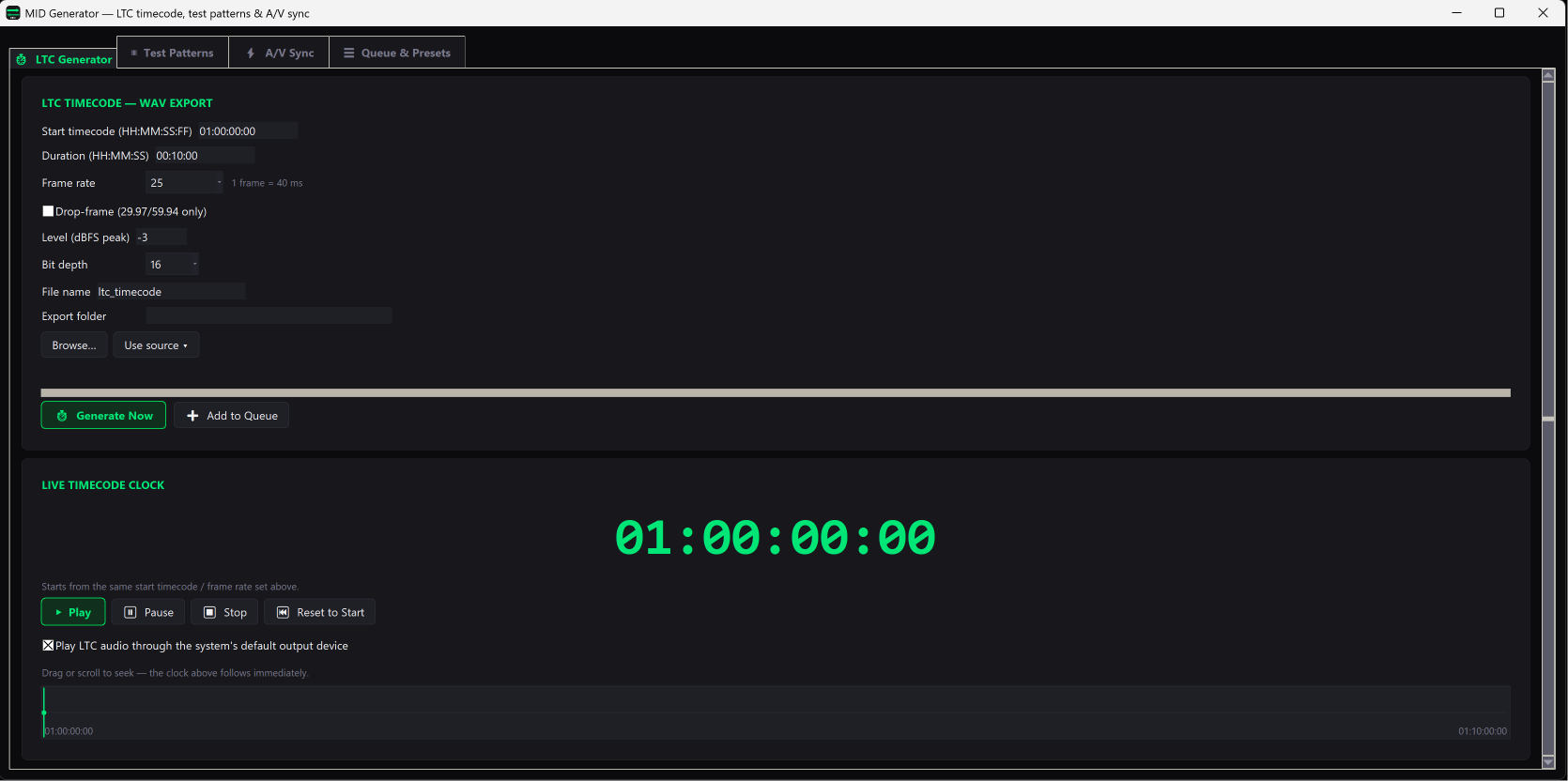

MID Generator LTC timecode tab with live timecode clock

A/V Sync

Calibrate sync with a frame-accurate offset clip

Generate a beep+flash test clip with a burned-in offset label, or import an existing export to scrub it in a dedicated frame-accurate player — so an A/V sync issue is a number you can read, not a guess.

Configurable flash interval, beep frequency and duration
Frame-accurate calibration offset, burned into the render

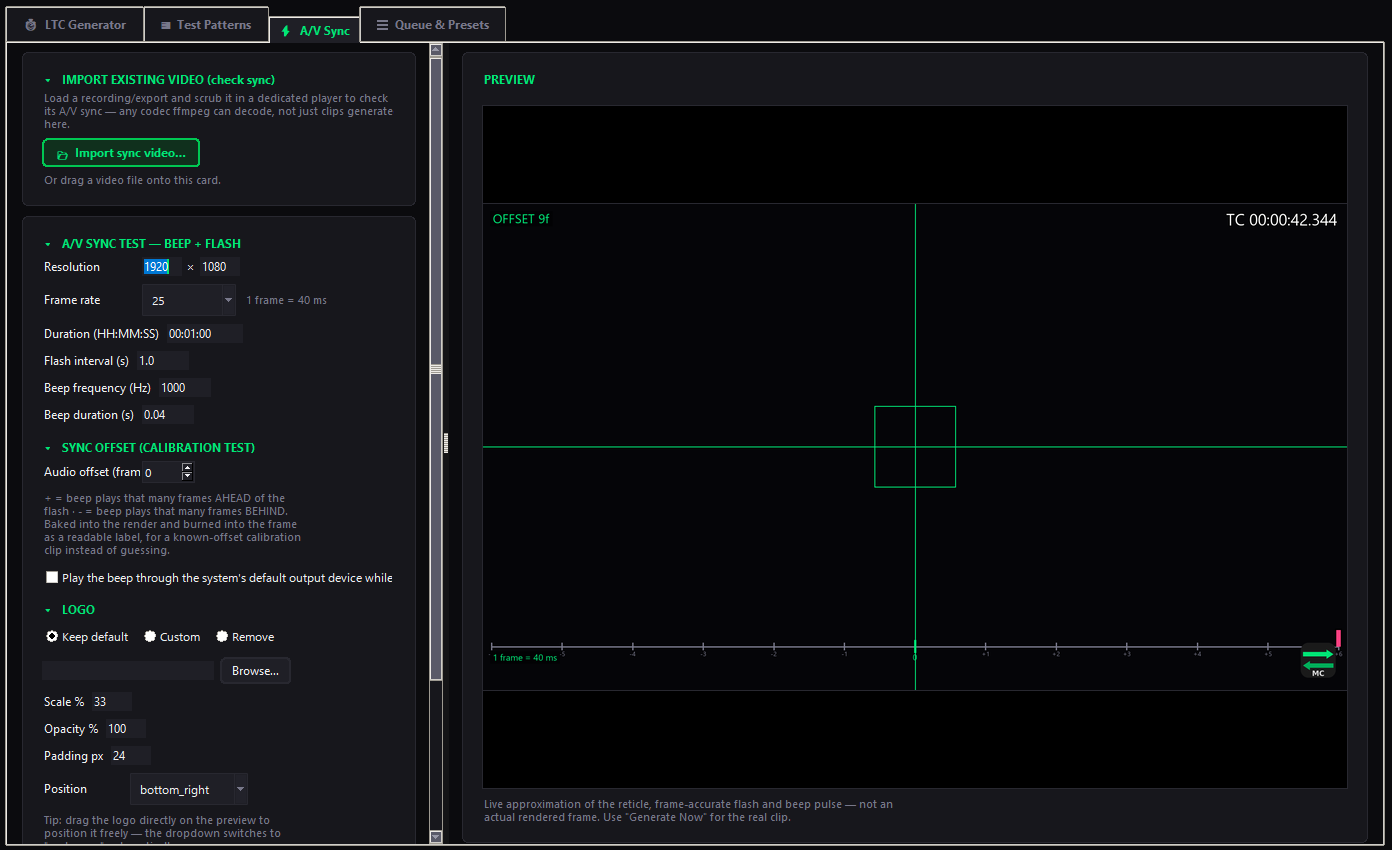

MID Generator A/V Sync tab with beep and flash calibration preview

MID Generator is in every MID Tech tier

MID Generator is the one tool that comes with Preproduction, Live and Show alike — plus Full Suite, once it's ready.
